668
- | Series 1 freight containers-Classification, external dimensions and ratings | |
6346 | - | Coding, identification and marking for freight containers |
1161 | - | Specification of corner fittings for series 1 freight containers |
1496/1 | - | Specification and testing of series 1 freight containers. Part 1 : General cargo containers for general purposes |
830 | - | Freight containers-Terminology. |
6359 | - | Freight containers-Consolidated data plate |
2) The International Union of Railway (UIC) code 592 OR.
3) The Customs Convention on the International Transport of Goods(TIR).
4) The International Convention for Safe Containers (CSC).
5) Transportation Cargo Containers and Unit Loads Quarantine Aspects and Procedures by Commonwealth of Australia Department of Health. (TCT)
6) provide certificates from classification society (BV, ABS, GL, CCS, LR, KR).

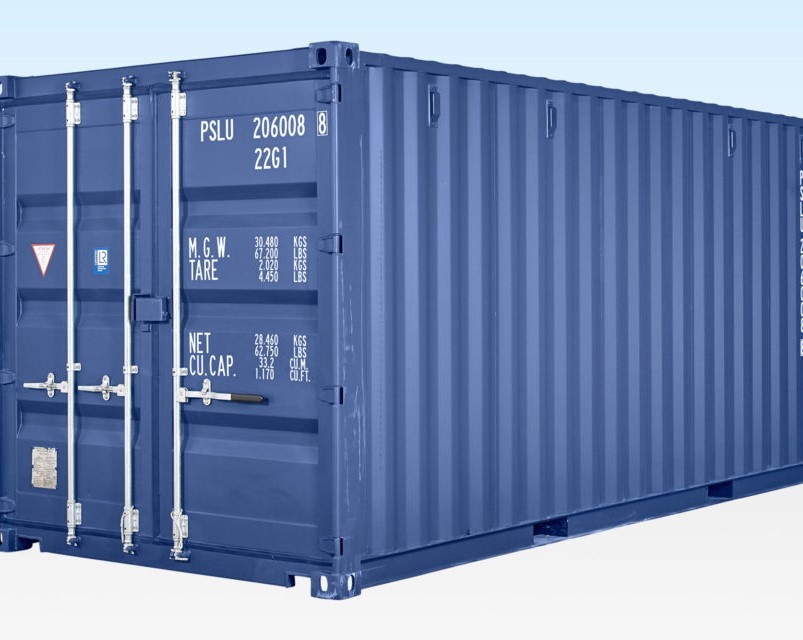

The specifications of 20’ GP containers:
1 Dimension
External Dimensions | Internal Dimensions | |
6,058 ( 0, -6 ) mm | 5,898 ( 0, -6 ) mm | |
Width | 2,438 ( 0, -5 ) mm | 2,352 ( 0, -5 ) mm |
Height | 2,591 ( 0, -5 ) mm | 2,393 ( 0, -5 ) mm |
2 Door Opening
mm | ||
Height ................... | 2,280 ( 0,-5 ) | mm |
3 Fork Pocket
mm | ||
Height ................... | 115 | mm |
Center distance ....... | 2,080 | mm |
4 Inside Cubic Capacity
5 Rating
30,480 kg | 67,200 lbs | |
Maximum Payload ............. | 28,300 kg | 62,400 lbs |
Tare Weight ............... | 2,180 kg | 4,800 lbs |
Applications or special features:
1. ISO standard general dry cargo steel shipping container.
2. for sea, inland, and railway transportation.
3. convenient for loading, lifting, moving.
|
|
![]() |
